Load cell

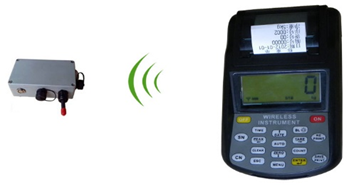

Wireless system 1 - 580DW


*.Body protection: alloy aluminum capacities are powder coated. Size: 110 x 63 x37mm
*.Transmitter is water proof design.IP67
*.Accuracy: OIML III
*.Units: Units can be changed on wireless indicator.
*.Gravity regulation: The acceleration of gravity can be regulated through indicator parameter
*.Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold,Over load warning. User calibration (with password).
*.Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
*.Transmitter body key: One local mechanical keys: ”ON/OFF” .
*. Transmitter antenna: water proof antenna
*.Indicator communications: Both RS232 serial port and USB port,solve most laptops without
serial port problem. with the company’s PC host computer software, not only display
weigh value and stable information on the PC ,can also enter company’s name, complete storage ,
print query and other functions .
*.Indicator keyboard function: It can print data, time, Serial number, commodity number,
net weight and total weight. Also can input 9 digits head information, It can store up to 2000
weighing records. It can be statistics by serial number or commodity number,also can statistics by
data, statistical results can be printed with weighing number and total weight.

Accuracy Standard According to OIML class III
Indicator Display 25mm(1”) 5digits LCD
Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤10 seconds
Overload Indication 100% F.S. + 9e
Transmitter/indicator Battery Life ≥50 hours
Transmitter Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator Battery SC3300mAh NIH Battery. 1.2Vx6
Transmitter Charger DC4.2V/1000mA
Nominal operating Temp. - 10℃ ~ + 40℃
Operating Humidity ≤85% RH under 20℃
Wireless Distance 100M without obstacle
Wireless Frequency 433MHz
