Load cell
MODEL: FEATURES:

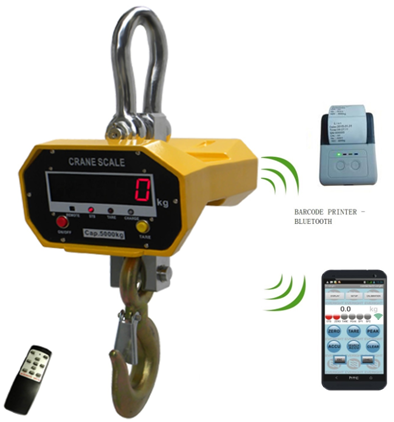

OCS-SL Crane scale

IP67 - OPTION

*. 38mm LED display, LCD (optional)
*. Gross/Net weight display convertible
*. Multi-functions: Tare; Zero; Hold; Overload warning
*. Auto shut off
*. Remote control calibration
*. Infrared remote control distance:10m
*. Kg/lb units
*. Die-casting aluminum housing
*. Equipped with wireless module (Optional) to connect with scoreboard, PC
*. High duty bow shackle and eye hook
*. Acid-lead rechargeable battery 6V/5Ah
*. Anti-magnetic & water-proof
*. Compact body style
*. WIFI Bluetooth - Option



SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD);60 hours(LED)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


Model Capacity Division N.W. (kg) A(mm) B(mm) C(mm) D(mm) E(mm) H(mm)
OCS-SL 2t 1kg 11 95 260 33 195 135 430
OCS-SL 3t 1kg 12 95 260 40 195 135 455
OCS-SL 5t 2kg 18 120 325 50 240 165 535
OCS-SL 10t 5kg 28 124 325 60 240 165 660
OCS-SL 15t 5kg 50 225 345 70 240 165 855
OCS-SL 20t 10kg 58 225 345 85 240 165 920
