MODEL: FEATURES:
DLW(ERT-B) Crane scale

IP67 - OPTION

*. 25mm LCD display with back-light
*. Local key: ON/OFF, ZERO,UNIT,PEAK
*. Kg/t/lb/N/KN units
*. Low power warning
*. High duty alloy steel shackle and hook
*. Overload warning – programmable set
*. 3pcs AA battery
*. 1-5t: Aluminum; 10-200t: alloy steel

ERT-B wireless type:
*. Wireless frequency: 2.4G/433Mhz
*. Wireless indicator – handhold
*. Bi-directional transmission – 99 channel setting
*. Wireless transmission distance: no less than 200 meters when unobstructed
*. Option: RS232 interface and relay
*. Wireless indicator to connect with scoreboard, PC, printer
SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


MODEL Capacity Division N.W. (kg) A (mm) B (mm) C (mm) D (mm) φ (mm) N (mm) H2 (mm) Material
ERT-01 1t 0.5kg 3.5 245 112 37 190 43 89 335 Aluminum
ERT-02 2t 1kg 4.6 260 123 37 195 51 103 365 Aluminum
ERT-03 3t 1kg 4.6 260 123 37 195 51 103 365 Aluminum
ERT-05 5t 2kg 6.5 285 123 57 210 58 120 405 Aluminum
ERT-10 10t 5kg 25 320 120 57 230 92 183 535 Alloy Steel
ERT-20 20t 10kg 50 420 128 74 260 127 230 660 Alloy Steel
ERT-30 30t 10kg 90 420 138 82 280 146 265 740 Alloy Steel
ERT-50 50t 20kg 130 465 150 104 305 184 345 930 Alloy Steel
ERT-100 100t 50kg 320 570 190 132 366 229 483 1230 Alloy Steel
ERT-200 200t 100kg 780 725 265 183 440 280 620 1380 Alloy Steel



More working system

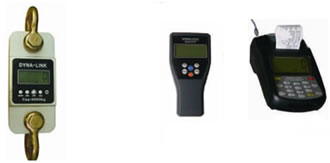

A. Standard systme: single network between one
dynamometer and one indicator

Options

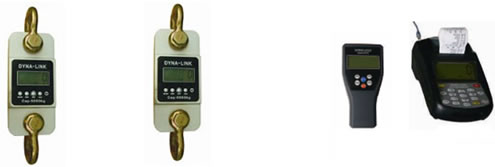

B. single network between two dynamometers and one indicator
indicator control load of each dynamometer and plus total value

Options

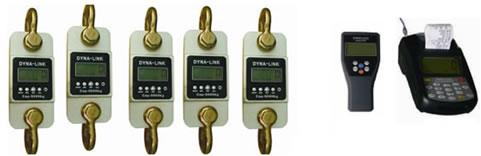

C. single network between multiple dynamometers (up to 5)and one indicator,
indicator control load of each dynamometer and plus total value

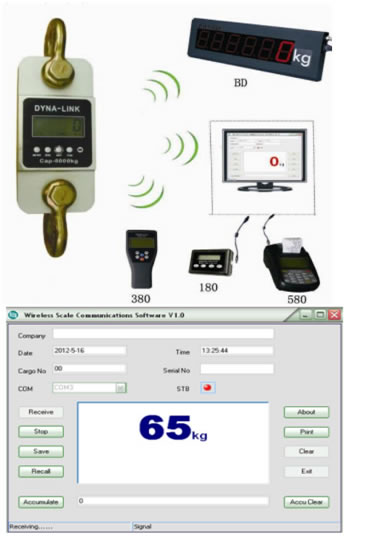

Other indicators and PC software

Wireless indicator 580
*. Wireless frequency: 2.4G/433Mhz
*. Portable indicator with micro-printer
*. Leather bag include
*. LCD display with backlight
*. Microprinter to print date,time,serial no. commodity no. net weight and total weight
*. Company'name 16 digits input
*. Query on serial no. commodity no and date, then print weight and total weight
*. Store up to data records of 3000 weighings.
*. USB connection with PC
*. Software: live weighing value, input company name,complete storage ,print query and accumulation
*. 3500mAh SC type NIMH batteries

Wireless indicator 180
*. Wireless frequency: 2.4G/433Mhz
*. Palm-sized housing, size：28*70*90mm
*. LCD display with backlight
*. Function: tare,zero,calibration and parameter setup
*. USB connection with
*. Software: live weighing value, input company name,complete storage ,print query and accumulation
*. USB power supply, lithium battery optional

More details:

IP67 - OPTION Alumimiun box Plastic box -OPTION Testing machine
Display of indicator Display of indicator Display of indicator Display of indicator
