Load cell
MODEL: FEATURES:

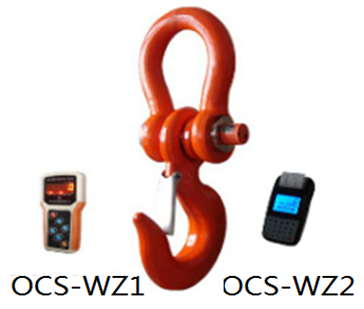

OCS-WZ

*. CE approved
*. High duty alloy steel shackles
*. 2-50t: alloy steel full sealed
*. Standard Lithium battery
*. OCS-SH1 LED, OCS-SH2 LCD with printer
*. Kg/lb units
*. Wireless frequency: 433MHz
*. Wireless transmission distance: no less than 200 meters when unobstructed
*. Option: RS232 interface
*. Function : Zero,Tare,Clear,Hold,Unit,Overload warning,Low power warning,accumulation etc.
*. Lithium battery and adaptor





SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


MODEL Capacity Division N.W. A B C D E F G
OCS-WZ 2t 1kg 6.3 319 126 72 88 132 198 33
OCS-WZ 3t 1kg 6.3 407 161 88 123 160 219 33
OCS-WZ 5t 2kg 11.5 407 161 88 123 160 219 42
OCS-WZ 10t 5kg 16.5 484 202 96 172 160 246 50
OCS-WZ 15t 5kg 25 585 210 126 195 214 263 55
OCS-WZ 20t 10kg 30.5 621 284 142 210 251 294 70
OCS-WZ 30t 10kg 69 858 344 174 344 302 356 90
OCS-WZ 50t 20kg 165 1020 470 200 250 360 436 135
