MODEL: FEATURES:

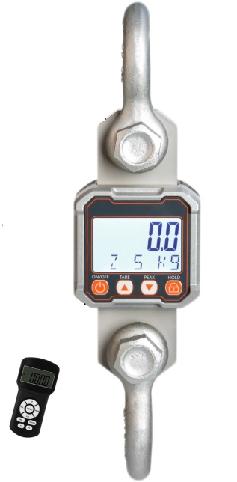

OCS-Y2 Crane scale

*. CE approved
*. 43mm LCD display
*. Gross/Net weight display convertible
*. Multi-functions: Tare; Zero; Hold; Overload warning
*. Weight accumulation function
*. Auto shut off
*. Remote control calibration
*. Wireless indicator display
*. kg lb N kN UN units
*. Alloy steel structure
*. Die-casting aluminum housing
*. High duty bow shackles
*. Dynamometer Ni-MH battery 3.7V1200mA 3pcs; Indicator Lithium battery 3.7V3000mA
*. Option: Bluetooth
*. Reminding: Limited by the display size, there are kg lb UN three units of indicator, and kg lb N kN UN five units of dynamometer.

SPECIFICATIONS:

*. Operating temp: 0℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.
*. Power source: Dynamometer Ni-MH battery 3.7V1200mA 3pcs; Indicator Lithium battery 3.7V3000mA
*. Safe load 125%,Ultimite load 400%

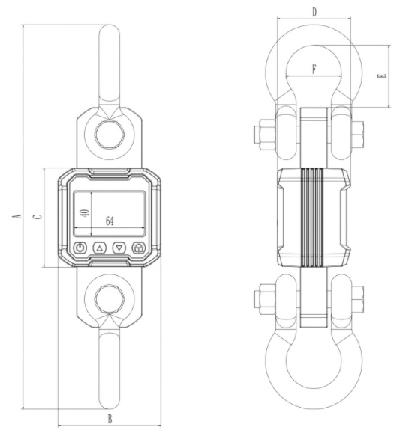

Model Capacity Division A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) N.W. (kg)
OCS-Y2 3t 1kg 360 95 91 67 59 50 3.34
OCS-Y2 5t 2kg 400 95 91 67 73 53 5.58
OCS-Y2 10t 5kg 560 95 91 67 123 90 13.14
