MODEL: FEATURES:
SCS-PA Portable Truck Scale

*. Load control and weighing for the vehicles
*. Measuring the weight and barycenter of airplane.
*. Measuring weight for special purpose.
*. Integrated design, self-weight less than 36kg, easy to move.
*. Special protection treatment against hard working conditions.
*. Equipped with rubber ramps to avoid impact.
*. Maximum load of a single wheel: 15t
*. Maximum capacity of single axle: 30t
*. Static accuracy 1‰, dynamic accuracy 1%
*. Truck speed <5km/h
*. Date and time input, truck no and axle type input; operator and series no input
*.Inquiry function and memory function – 624 records
*.Print date,time,operator no.,series no., truck no., axle weight, total weight.
*. Print records according to user setting
SPECIFICATIONS:
Rated output (mv/v) 0.9 Temperature effect on span (%FS/10℃) 0.1
Combined Error (%FS) 0.2 Temperature effect on zero (%FS/10℃) 0.1
Non-linearity (%FS) 0.1,0.2 Temperature. Compensated (℃) -60
Non-repeatability (%FS) 0.1 Temperature, operating (℃) -120
Creep(%FS/min) 0.1 Excitation, Voltage (V) 9-15(DC)
Input Resistance (Ω) 3120±40 Max. Excitation(V) 20(DC)
Output Resistance (Ω) 2800±10 Safe Overload (%FS) 120
Insulation Resistance (MΩ) ≥5000(100VDC) Ultimate Overload(%FS) 150
Zero Balance (%FS) 400-100 Protection Class IP66
Max. load for single point 15t,25t Cable Spec (m) 4-wire shield cable
Rated Capacity 15t,25t
Connections:
Red input(+) Black input(-) Green output(+) White output(-)

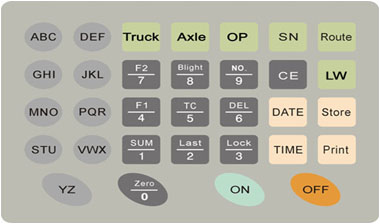

Indicator front panel

Standard parts
A) Axle weigher and dynamic weighing
B) 2pcs weighing pads and 1pc indicator with built-in printer
C) Aluminum weighing-pad 700x430x30mm and double rubber ramp 700x350mm
D) Axle Capacity 30t,70t,80t,each pad 15t,35t,40t
E) 4pcs of weighing pads and 1pc indicator with built-in printer - optional

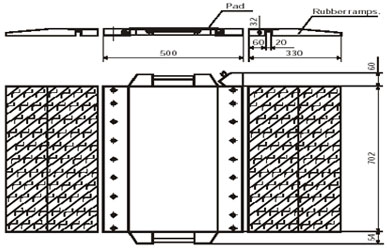

Dimension and Axle Capacity

Dimension (mm) Axle Capacity(t)
Each Pad Each Ramp
700x430x30mm700x350mm≤30
800x430x30mm800x350mm≤70
800x550x35mm800x350mm≤80

Indicators

Dynamic Weighing indicator XK3101-M3 wired indicator or wireless indicator
* For In-Motion Weighing Only
* High-definition LCD backlit dot matrix display
* Standby working 50 hours battery with auto switch off function
* 1400 Records stored.
* Water-proof keyboard
* Joint-axis compensation, speed compensation function in dynamic mode.
* Select axle type in High Accuracy Dynamic Mode
* Automatically axle sensor in Normal Accuracy Dynamic Mode
* With high speed thermal Printer
* 30 meters working distance for wireless version.
* Each Axle Weight
* Total truck weight
* 7 digitals Truck Plate Number input & recorded
* RS232 interface available
* 1 x Single Core CPU with 1 screen
Dynamic Weighing indicator XK3101-M5 wired indicator or wireless indicator
* For Static Weighing Only
* High-definition LCD backlit dot matrix display
* Standby working 40 hours battery with auto switch off func
* 10000 Records stored.
* Water-proof keyboard
* FREE Program upgrade.
* 2 Channels system as default
* 4 / 6 / 8 channels system are optional
* Each Wheel Weight
* Each Axle Weight
* Total truck weight
* 1 x Dual Cores CPU with 1 screen
* 30 meters working distance for wireless version.
* With high speed thermal Printer
* 8/9 digitals Truck Plate Number input & recorded
* RS232 interface available
