Products
Load cell
MODEL: FEATURES:

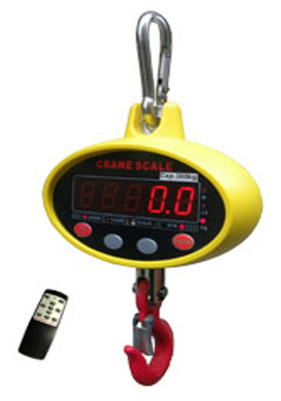

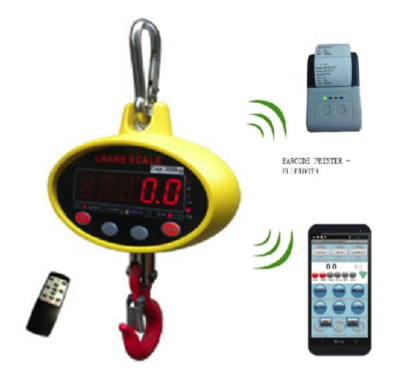

OCS-SF Crane scale

*. NEMA 12/IP54 powder coated Die-Casting Plastic
*. Multi-weighing units: Kg, lb,N
*. Multi-function operation: Tare; Zero; Total;Hold; Overload warning
*. Ultimate Load: 400%F.S.
*. Large red 5 digit LED/LCD display (digit height 20mm)
*. Remote control calibration
*. Infrared remote control distance:10m
*. High duty fixed shackle and rotating hook
*. Gravity regulation,default 9.793
*. Automatic turn-off
*. Power-saving function.
*. RS-232-continuous or on demand data output, user-selectable.
*. Acid-lead rechargeable battery 4V/2Ah,AA battery-option
*. Adaptor DC 4V/500mA


SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD);60 hours(LED)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


MODEL Capacity Division N.W. (kg)
OCS-SF 30kg 10g 0.95
OCS-SF 50kg 20g 0.95
OCS-SF 100kg 50g 0.95
OCS-SF 150kg 50g 0.95
OCS-SF 200kg 100g 0.95
OCS-SF 300kg 100g 0.95
