MODEL: FEATURES:
GL-CFBHP Cable tention tester (overload limiter)

*. Over load guard of small dimensions for cranes and lifting systems
*. Can be installed easily without cutting or unloading the line.
*. Widely used outdoor in harsh environment
SPECIFICATIONS:
Capacity kg 1000,2000,5000,10000
Accuracy 　 C3
Sensitivity (mv/v) 2.0±0.01
Non-linearity (%FS) ±0.05
Repeatability (%FS) ±0.05
Hysteresis error (%FS) ±0.05
Creep (%FS/30min)  ≤±0.03
Temperature Effect on sensitivity (%FS/10℃) ±0.03
Temperature Effect on Zero (%FS/10℃)  ≤±0.03
Sensitivity (mv/v) 2.0±0.01
Input Resistance (Ω) 380±2Ω
Output Resistance (Ω) 350±2Ω
Insulation Resistance (MΩ) ≥5000(50VDC)
Zero Balance (%FS) ±1
Operating Temperature Range (℃) -20～+80
Excitation Voltage (V) 10(DC)
Maximum Excitation Voltage  (V) 15(DC)
Safe load (%FS) 150
Breaking load  (%FS) 300
Material 　 Alloy steel
Protection class 　 IP 67
Cable color 　 power + red

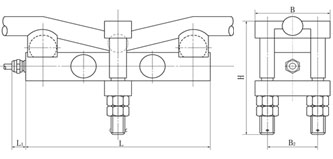

Model Capacity Dia H L L1 B B1
GL-CFBHP 1t Ø10-18 117 160 18 76 45
GL-CFBHP 2t Ø16-26 117 160 18 76 45
GL-CFBHP 5-10t Ø24-36 170 260 18 108 68
