Load cell

ATC-108A Analog loadcells to PC converter


*. Input analog: 1-3mv/v;
*. Input resistance: 300-2000 Ohms
*. Drive max 12pcs loadcells of 300 Ohms

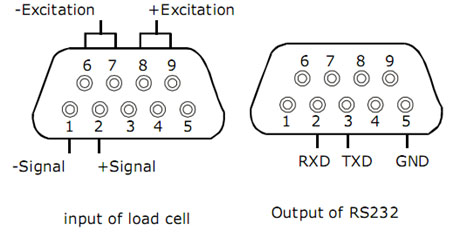

*. Output RS232, connect PC directly
*. Non-linearity compensation and filter treatment
*. Exterior LED show working condition


*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


This is basic weighing solution used for analog static weighing stystem.
No need indicator, low cost, easy connection between junction box and PC

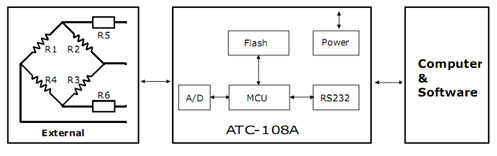

The signal of analog loadcells magnified by junction box is processing by MCU after A/D conversion,
then output to PC by RS232
