Load cell
MODEL: FEATURES:

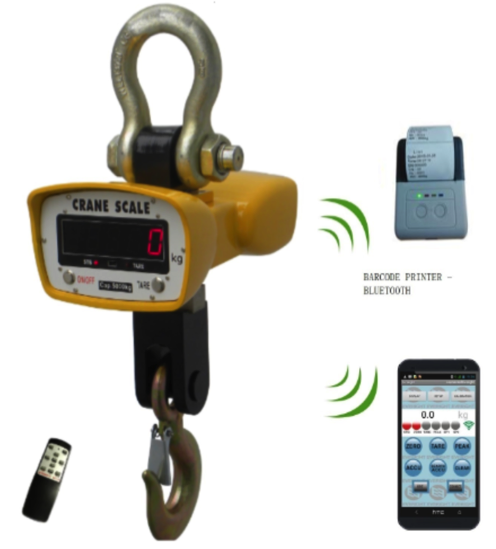

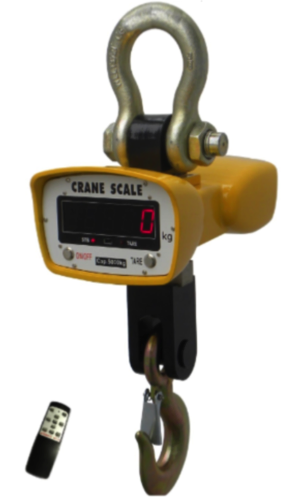

OCS-S9 Crane scale

*. 38mm LED display, LCD (optional)
*. Gross/Net weight display convertible
*. Multi-functions: Tare; Zero; Hold; Overload warning
*. Auto shut off
*. Remote control calibration
*. Infrared remote control distance:10m
*. Kg/lb units
*. Die-casting aluminum housing
*. Equipped with wireless module (Optional) to connect with scoreboard, PC
*. High duty bow shackle and eye hook
*. Acid-lead rechargeable battery 6V/7Ah
*. Anti-magnetic & water-proof
*. WIFI Bluetooth - Option



SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD);60 hours(LED)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.

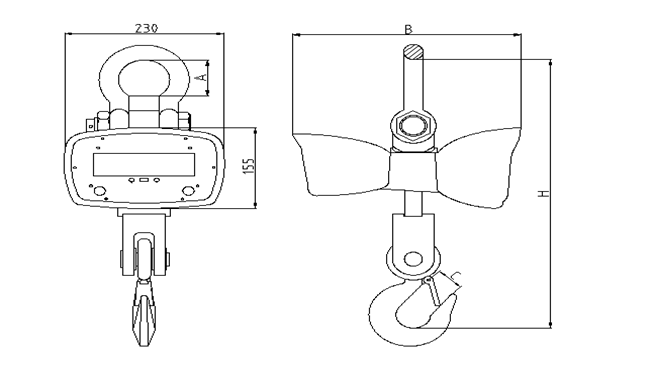

MODEL Capacity Division N.W. (kg) A(mm) B(mm) C(mm) H(mm)
OCS-S9 1t 0.5kg 12 80 340 30 420
OCS-S9 2t 1kg 12 80 340 30 420
OCS-S9 3t 1kg 14 100 340 40 600
OCS-S9 5t 2kg 23 130 360 45 720
OCS-S9 10t 5kg 43 145 360 60 850
OCS-S9 15t 5kg 60 170 360 85 900
OCS-S9 20t 10kg 65 170 360 85 900
