MODEL: FEATURES:

OCS-V Crane scale

*. CE approved
*. 41mm LED display, LCD (optional)
*. Gross/Net weight display convertible
*. Multi-functions: Tare; Zero; Hold; Overload warning
*. Weight accumulation function
*. Auto shut off
*. Remote control calibration
*. Infrared remote control distance:10m
*. Kg/lb/N units
*. Die-casting aluminum housing
*. High duty bow shackle and eye hook
*. Optional waterproof IP66
*. 18650 lithium battery

SPECIFICATIONS:

*. Operating temp: 0℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.
*. Power source: 18650 lithium battery
*. Safe load 125%,Ultimite load 400%

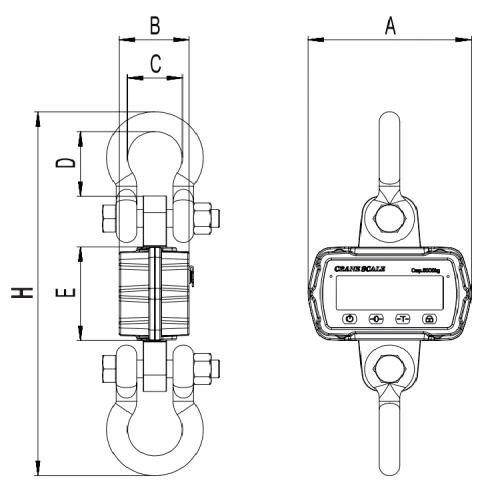

Model Capacity Division A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) L (mm) H (mm)
OCS-V 1t 0.5kg 173 74 50 55 103 33 440 370
OCS-V 2t 1kg 173 74 50 55 103 33 440 370
OCS-V 3t 1kg 173 74 50 55 103 33 440 370
OCS-V 5t 2kg 173 74 55 70 103 33 490 405
OCS-V 10t 5kg 173 95 83 97 103 43 605 530
