MODEL: | FEATURES: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

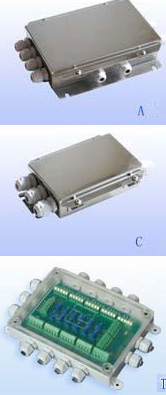

CX-JB Junction Box |
FEATURES: *. Analog junction box *. Material: A/B - stainless steel; T - MBS/ABS *. Durableand excellent sealing *. Excitation voltage adjustment *. Can be connected 1 to 12 load cells in parallel *. Water proof class: A/B IP 65; T - IP 67 *. Operating temp: 0℃ ~ + 40℃ *. Storage temp: -20℃ ~ + 60℃ *. Model T - PG9 for cable diameter 5…7mm *. Model T - lid is transparent, inside component is visible |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MODEL: | FEATURES: | ||||||||||||||||||||||||
CX-SR Large Screen Display |
*. High luminance, long working life, good stability and beautiful appearance stainless steel large display |
||||||||||||||||||||||||
|
MODEL: | FEATURES: |
Load cell cable |
FEATURES: *. 4 wire cable or 6 wire cable *. Length: 100m *. Low capacity, high capacity symmetry *. Cable 4 colour: red,green,black,white Cable 6 colour: red, brown,green,blue,black,white *. Cable 4 diameter: 5.2mm± 0.2 Cable 6 diameter: 6.3mm± 0.3 *. Coating material: PVC *. Wire cross section: 0.2mm2 *. Wire resistance: ≤ 0.9 Ω/mm *. Capacity: ≤ 80 PF/M *. Screen: 1 |
MODEL: | FEATURES: | ||||||||||||||||||||
FYZ-MF Jointed foot |
*. M12x1.75, M18x1.50, M20x2.5,M24x2.00 *. Mild steel: 40Cr *. Stainless steel: 2CR13 *. Active ball suspension to center automatically,high ability of anti-side load. *. Easy installation,height adjustable,anti-corrosion. *. Mainly used for the floor scale,platform scale in harsh and corrosive environments. |
||||||||||||||||||||
|
MODEL: | FEATURES: |

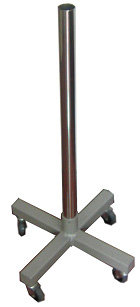

ASP-PL |
*. Pole height: 66cm *. Mild steel or stainless steel *. Four wheels to make indicator movable *. Light weight and easy movable *. Mainly used for the floor scale,platform scale in harsh and corrosive environments. |
MODEL: | FEATURES: |

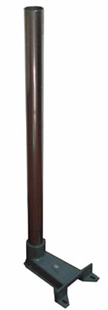

ASP-PLM |
*. Pole height: 66cm *. Mild steel or stainless steel *. Light weight and easy movable *. Mainly used for the floor scale,platform scale in harsh and corrosive environments. |
