Load cell
MODEL: FEATURES:

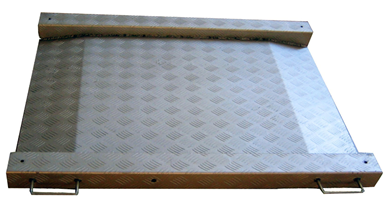

TCS-RW aluminum scale



*. All aluminum structure, low weight
*. Light self-weight (25-35kg)
*. Checker-plate platform
*. Low profile, with double ramps
*. Built-in wheels for moving when upright, with handles
*. With 4pcs Keli SQB load cells (alloy-steel, OIML / NTEP approval)
including feet (alloy steel)
*. Without indicator
*. With junction box (plastic housing, water-proof) and 5m cable
*. Supply with 2pcs rings-bolts for each unit to be lifted
*. Mild-steel square-tube welding pallet for LCL transportation method,1pc pallet for 5~10pcs scales





SPECIFICATIONS:

*. Operating temp: 0℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


Model Capacity Division Pan size
TCS-RW 0.5t-1.5t 0.2kg-0.5kg 0.6mX0.8m
TCS-RW 0.5t-1.5t 0.2kg-0.5kg 0.8mX0.8m
TCS-RW 0.5t-1.5t 0.2kg-0.5kg 0.8mX1.0m
TCS-RW 0.5t-1.5t 0.2kg-0.5kg 1.0mX1.0m
TCS-RW 0.5t-1.5t 0.2kg-0.5kg 1.0mX1.2m
