Load cell
MODEL: FEATURES:

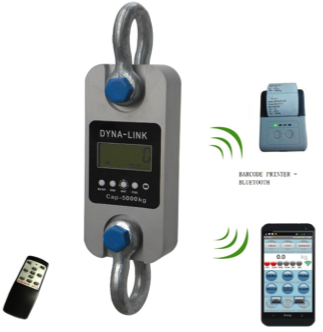

DLR(ERT-A) Crane scale


*. 25mm LCD display with back-light
*. Local key: ON/OFF, ZERO,UNIT,PEAK
*. Kg/t/lb/N/KN units
*. Low power warning
*. High duty alloy steel shackle and hook
*. Overload warning – programmable set
*. 3pcs AA battery
*. 1-5t: Aluminum; 10-200t: alloy steel
ERT-A standard type:
1. Infrared remote control calibration
2. Function : Zero,Tare,Clear,Peak,Accumulate,Hold,Unit,Voltage etc.
*. WIFI Bluetooth - Option

SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H.


MODEL Capacity Division N.W. (kg) A (mm) B (mm) C (mm) D (mm) φ (mm) N (mm) H2 (mm) Material
ERT-01 1t 0.5kg 3.5 245 112 37 190 43 89 335 Aluminum
ERT-02 2t 1kg 4.6 260 123 37 195 51 103 365 Aluminum
ERT-03 3t 1kg 4.6 260 123 37 195 51 103 365 Aluminum
ERT-05 5t 2kg 6.5 285 123 57 210 58 120 405 Aluminum
ERT-10 10t 5kg 25 320 120 57 230 92 183 535 Alloy Steel
ERT-20 20t 10kg 50 420 128 74 260 127 230 660 Alloy Steel
ERT-30 30t 10kg 90 420 138 82 280 146 265 740 Alloy Steel
ERT-50 50t 20kg 130 465 150 104 305 184 345 930 Alloy Steel
ERT-100 100t 50kg 320 570 190 132 366 229 483 1230 Alloy Steel
ERT-200 200t 100kg 780 725 265 183 440 280 620 1380 Alloy Steel



More details:
IP67 - OPTION Alumimiun box Plastic box -OPTION Testing machine
