Load cell
MODEL: FEATURES:

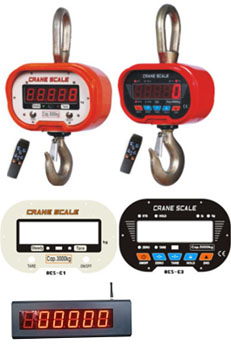

OCS-C Crane scale



*. 38mm LED display, LCD (optional)
*. Gross/Net weight display convertible
*. Multi-functions: Tare; Zero; Hold; Overload warning
*. Weight accumulation function
*. Auto shut off
*. Remote control calibration
*. Infrared remote control distance:10m
*. Kg/lb units
*. Die-casting aluminum housing
*. Equipped with wireless module (Optional) to connect with scoreboard, PC. - ONLY OCS-C3
*. High duty fixed shackle and rotating hook
*. Bearing design rotating hook
*. Gravity acceleration set - ONLY OCS-C3
*. Drawer battery housing to change battery easily
*. Acid-lead rechargeable battery 6V/3.5Ah
*. Anti-magnetic & water-proof

SPECIFICATIONS:

*. Weight accuracy: OIML III standard.
*. Continuous working: 100 hours(LCD);60 hours(LED)
*. Safe overload: 120%F.S.
*. Operating temp: - 10℃ ~ + 40℃
*. Operating humidity: <= 90%R.H..


Model Capacity Division N.W. (kg) A(mm) B(mm) C(mm) L(mm)
OCS-C 1t 0.5kg 11.5 70 100 35 420
OCS-C 2t 1kg 11.5 70 100 35 420
OCS-C 3t 1kg 11.5 70 100 35 420
OCS-C 5t 2kg 16 85 115 40 480
